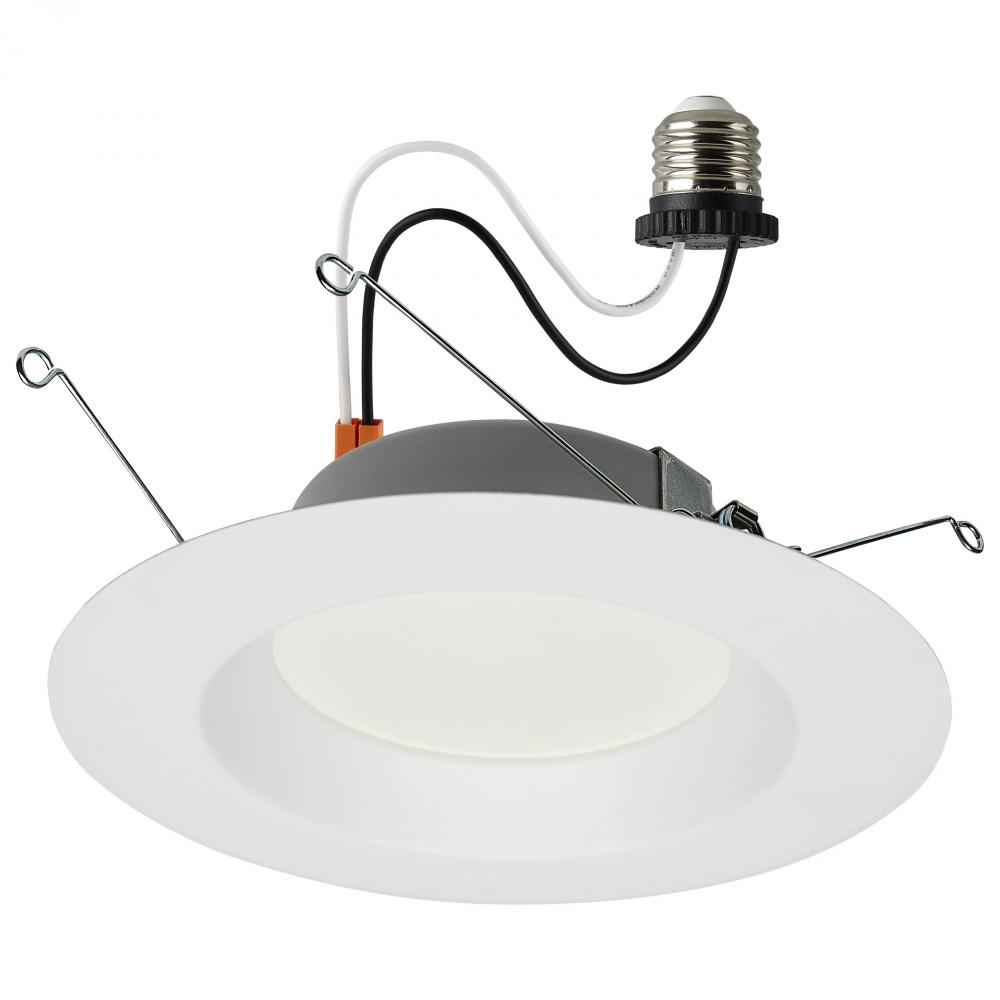

12.5 Watt LED Downlight Retrofit; 5-6"; 4000K; 120 Volts; Dimmable; White Finish (X6W23)

Image may not reflect selected features
No Image
Available
12.5 Watt LED Downlight Retrofit; 5-6"; 4000K; 120 Volts; Dimmable; White Finish
additional image
BASE PRICE:
$
13
90
/ / 1
($13.90 / 1)
WAS
$
Call for Price
+
-
Add To Cart
Add To Estimate
Add To Wishlist
Save To Compare
Item #:
X6W23
Dimensions:
Height: 1.97"
Width: 7.36"
White
Availability:
    Recommended Items
    Description
    Details
    Downloads
    12.5 Watt LED Downlight Retrofit; 5-6"; 4000K; 120 Volts; Dimmable; White Finish
    Internal #:
    X6W23
    Category:
    Recessed Ltg.
    Subcategory:
    Recessed Lighting Trims
    Finish:
    White
    Option:
    LED , Prop 65
    Category:
    Recessed
    Sub Category:
    Retrofits
    Style:
    Utility
    Bulb Hours:
    35000
    Bulb Kelvin:
    Cool White
    Bulb Shape:
    Integrated LED
    Bulb Type:
    LED
    Diameter:
    7.36
    Dimmable:
    Yes-Dimmable
    Harmonized Codes:
    8539.52.0091
    Lumens:
    900L
    Ship Carton Height:
    8.07
    Ship Carton Length:
    8.07
    Ship Carton Width:
    2.76
    Warranty:
    5 Year Limited - Fixtures
    Air Tight:
    Yes
    Amps:
    0.104A
    ANSI Base:
    E26 Adapter
    Beam Spread:
    100
    CA Prop-65:
    Lead
    Can Size:
    5-6 in.
    Carton Cubic Feet:
    0.104
    Cartons Per Unit:
    1
    CCT Selectable:
    No
    CEC:
    California T24 2016 - 2022 JA8 Listed; T20 Listed
    CEC Terse:
    Lawful for sale in California
    CEC Web Text:
    California T24 Listed
    Ceiling Aperture:
    5.36 in. Cutout
    Connection:
    Connector or Adapter
    Country Of Origin:
    China
    CRI:
    90+
    Dimmable Down To:
    100 to 10 percent
    Dimming Type:
    Phase cut
    Efficacy:
    72.00 LPW
    FCC Compliant:
    Yes
    Feature 1:
    Smooth Baffle Round
    Feature 2:
    90 CRI
    Feature 3:
    E26 Adapter
    Feature 4:
    Wet Location
    Feature 5:
    Compatible with 5-6 inch standard housing
    Feature 6:
    T24 Compliant
    Feature 7:
    Phase-Cut Dimmable down to 10 percent
    Finish Family:
    White
    Fixture shape:
    Round
    IC Rated:
    Yes
    Incandescent Equivalent:
    75W
    Includes:
    E26 Adapter included (S9001)
    Indoor Outdoor:
    Indoor
    IOT Enabled:
    No
    JA8 Compliant:
    Yes
    Lens Finish:
    White
    Lens Material:
    Polycarbonate (PC)
    Long Description:
    Elevate your lighting with SATCO NUVO's S11644 LED Retrofit Downlight, designed with impeccable color rendering. This retrofit is 12.5-watts with a beam spread of 100 degrees and a color temperature of 4000K, making it the perfect upgrade for existing
    Material:
    Die-Cast Aluminum
    Minimum Compartment Size:
    For the 5 in. Recessed Luminaire: Dia: 5.38, Height: 7.5; For the 6 in. Recessed Luminaire: Dia: 6 In, Height: 7.5 in
    Mounting Procedure:
    Ceiling
    Operating Frequency:
    60Hz
    Operating Temprature:
    -20C (-4F) to +45C (+113F)
    Order In Multiples Of:
    1
    Pack Type:
    Box
    Power Factor:
    0.9
    Quantity In Pack:
    1
    R9 Value:
    50
    Replaceable Light Source:
    No
    RoHS Compliant:
    Yes
    Romance Copy:
    Elevate your lighting with SATCO NUVO's LED Retrofit Downlights, designed with impeccable color rendering. These retrofits include an E26 adapter making them the perfect upgrade to replace existing screw base lamps in downlight applications. Featuring
    Safety Listing:
    cULus - Certified;cULus - Classified;cRUus - Recognized Component
    SDS class:
    LED_Lamp
    Short Description:
    12.5WLED/RDL/5-6/940/120V
    Temperature (CCT):
    4000K
    Title 20 Compliant:
    Yes
    Title 24 Compliant:
    Yes
    Total Harmonic Distortion:
    <30%
    Trim Color:
    White
    Wattage Selectable:
    No
    Weight Lb.:
    0.6
